Module AI HuskyLens Gravity SEN0305


Référence : huskylensmoduleai
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

76€ HT 91.2€ IVA INCLUSA

HuskyLens Gravity is an intelligent, low-cost, easy-to-use visual sensor based on an OV2640 camera combined with a 2" IPS display and a Kendryte K210 processor. Leggi di più

Quantité :
Descrizione

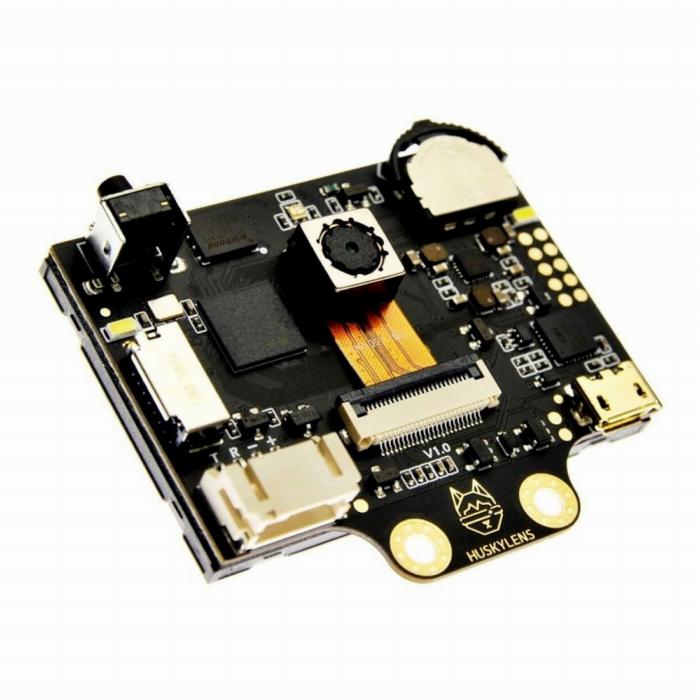

HuskyLens Gravity is an intelligent, low-cost, easy-to-use visual sensor based on an OV2640 camera combined with a 2" IPS display and a Kendryte K210 processor.

This module enables : object tracking, facial recognition, object recognition, line tracking, color recognition, QR code reading.

Programmable on the BBC Micro:bit interface, and soon on the Arduino interface.

Discover a french resource for getting to grips with the module on Micro:bit : https://fr.vittascience.com/learn/tutorial.php?id=991/prise-en-main-de-la-camera-huskylens-sur-l-interface-bbc-micro-bit

Features :

Power supply :

  • 5 Vdc via micro-USB
  • 3.3 to 5 Vdc via Gravity connector

Power consumption :

  • 320 mA at 3.3 Vdc
  • 230 mA at 5 Vdc

Camera : OV2640 2 MP

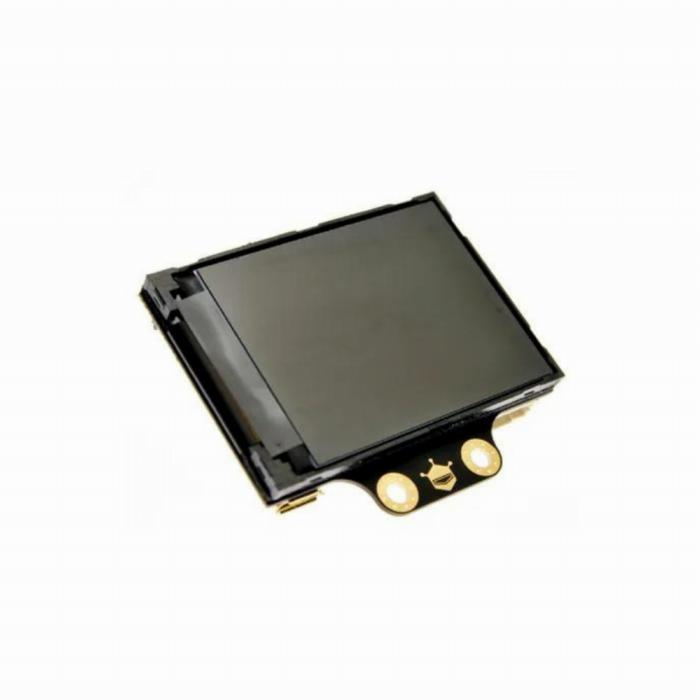

Display :

  • Type: IPS
  • Dimensions: 2" wide
  • Resolution: 320 x 240 pixels

Interfaces :

  • I2C
  • UART (9600, 115200 and 1000000 Bps)

microSD card reader (card not included)

Buttons :

  • Function buttons (left, right and select)
  • Teach button

Brightness adjustable from 1 to 100% (default 80%)

Front white LEDs (x2) : adjustable from 1 to 100% (default 50%)

RGB LED indicator

Dimensions : 52 x 44.5 mm
