I2C Motor Driver(L298P)


Référence : 105020093
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

14,75€ HT 17,70€ IVA INCLUSA

Grove - I2C Motor Driver(L298P) is a common-use motor driver for stepping motor and servo motor. Leggi di più

Quantité :

Potresti anche essere interessato a questi prodotti

Descrizione

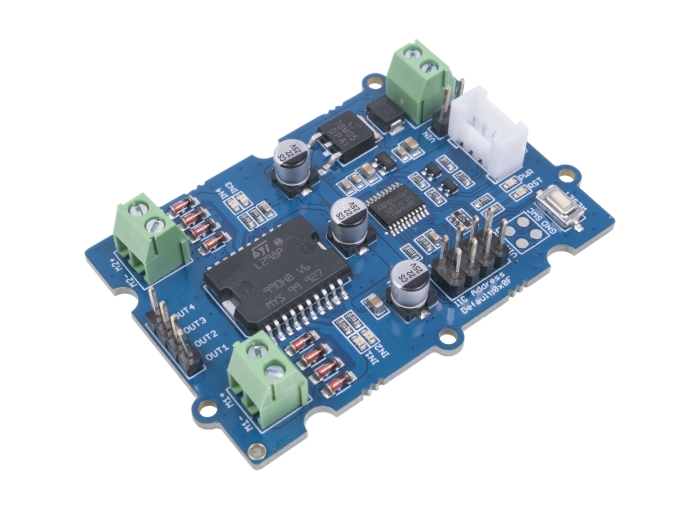

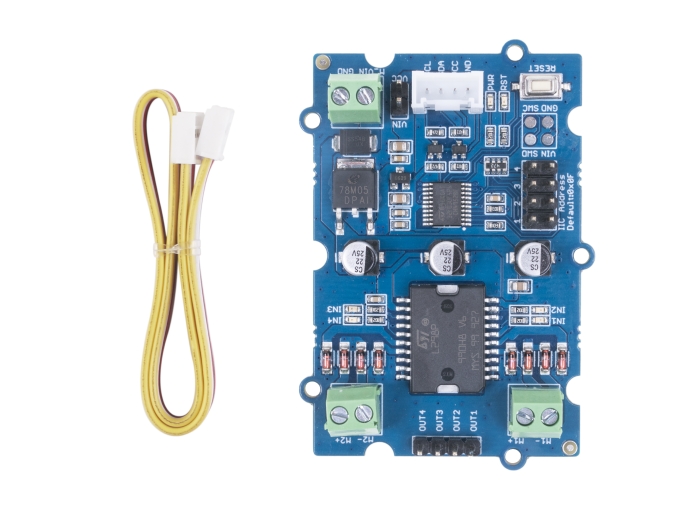

Grove - I2C Motor Driver(L298P) is a common-use motor driver for stepping motor and servo motor. It embeds an STM32 chip for burning the code to control the motor driver. 2-channel output: able to support 1A current on each channel, max 2A current; Need 6V-12V DC voltage input. User LED: green LED on for the clockwise direction and red LED on for the anti-clockwise direction for each channel.


This product is compatible with the following card(s) :
- STM32 NUCLEI-WB55RG and NUCLEO-WL55
- Arduino Uno and Nano
