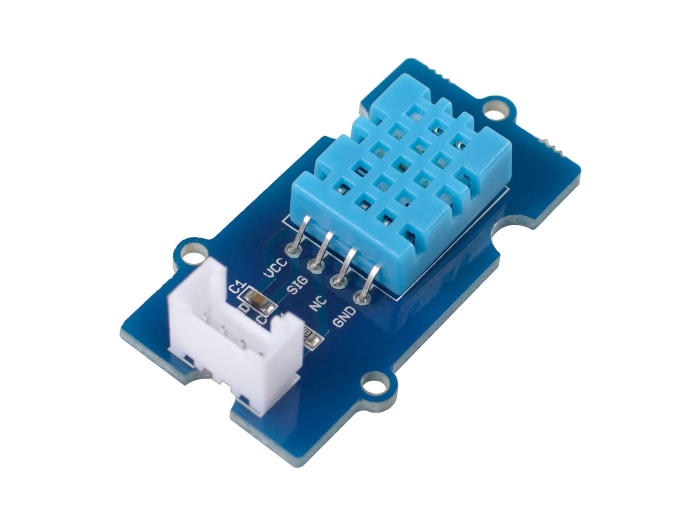

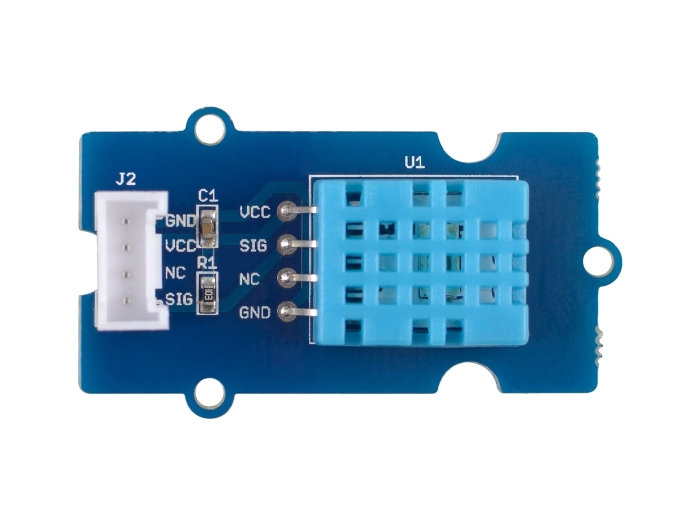

Temperature and humidity sensor Grove - DHT11


Référence : 101020011
Compatibilité
Arduino
Micro:bit
Raspberry Pi
STM32

6.25€ HT 7.5€ IVA INCLUSA

Measure temperature and humidity with a single sensor, the DHT11. Leggi di più

Quantité :

Potresti anche essere interessato a questi prodotti

Descrizione

Measure temperature and humidity with a single sensor, the DHT11.

  • Based on a NTC thermistor and a capacitive sensor, it returns a digital output.
  • Easy to use thanks to the Grove connector
  • Requires an extension card: Shield Grove (#categorie-14);
  • Sensor compatible with any card from 3.3 to 5V;
  • Temperature :
  • Measurement range: 0°C to +50°C
  • Accuracy: 1°C
  • Humidity :
  • Measuring range: 20 to 90% RH
  • Accuracy: 5% RH
  • Module dimensions: 40mm x 20mm x 11mm
  • Weight:

WARNING: the sensor does not work below 0°C

Examples of uses: weather station, humidity controller, connected air conditioner, ...

Manufacturer: Seeed Studio (https://wiki.seeedstudio.com/Grove-TemperatureAndHumidity_Sensor/)

Reference : 101020011
